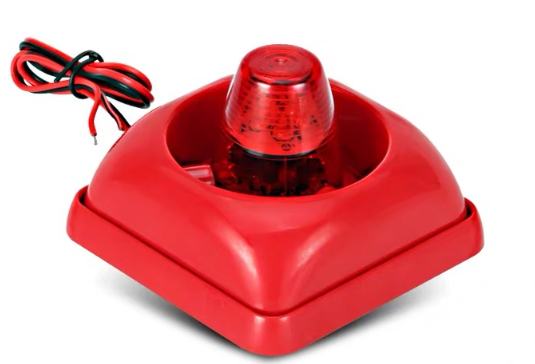

Fire Strobe Sounder EST-SF 105-3

EST-SF 105-3 Fire Strobe Sounder is a kind of terminal device for alarm; it is used for the sound and light alarm when the fire happens.

Description

Features

1. Adopt the two-wire or the four-wire
system wiring method
2. The main line end receives two main lines,
No polarization
3. Connect the power end to DC24V power line.

Application

EST-SF 105-3 sounder flasher is used in various settings, including commercial buildings, residential complexes,, and public spaces such as schools and hospitals, to provide audible and visual alerts during a fire emergency, ensuring timely evacuation and enhanced safety for all occupants.

Specifications

Temperature Range	-10℃~50℃
Humidity Range	≤ 95%RH
Operating Voltage	DC 12~25V
Working Current	70mA@24V
Flash Sound Pressure	95dB@1m (24VDC)
Strobe	8,000mcd, six super bright led
Dimension	L82 * W82 * H52 mm
